Additional Colors
Available Shapes and Sizes
:

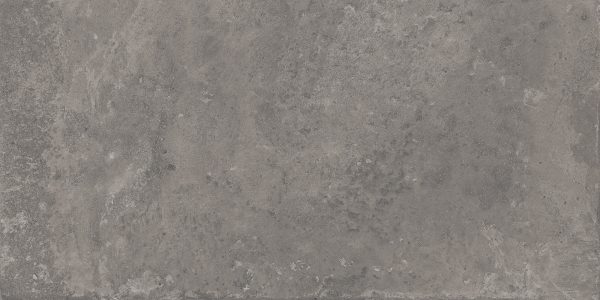

UB04
:
5/16
:
12X24
:
Matte
:
V3: High
:
United States
:

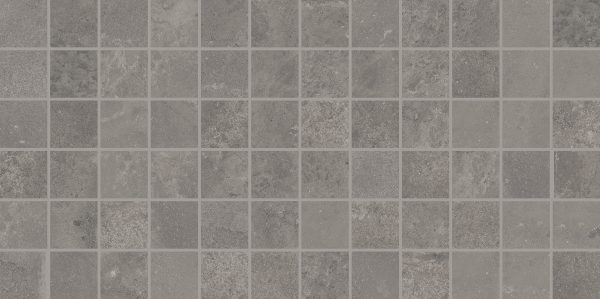

UB04
:
1/4
:
2X2
:
Matte
:
V3: High
:
Mexico
Application
| Target Dcof Wet | Suitable | |
|---|---|---|
| Dry & Level - Interior Floor | N/A | ā |
| Wet & Level - Interior Floor | ā„0.42 | ā |
| Shower Floors (Residential or Light Commercial) | ā„0.42 | ā |
| Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) | ā„0.60 | |
| Ramps & Inclines | ā„0.65 | |
| Walls/Backsplashes | N/A | ā |
| Countertops | N/A | ā |
| Pool Linings | N/A | ā |
| 1/8" | ||
āĀ A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTestā¢, visit daltile.com/DCOF. | ||
|
No additional notes | ||
Technical Specifications
| Test Method | Mosaic Tile | Floor Tile | |
|---|---|---|---|
| Water Absorption | ASTM C373 | < 3.0 | < 0.5 |
| Breaking Strength | ASTM C648 | 250 lbs | > 275 lbs |
| Scratch Hardness | ASTM MOHS | 8 | 8 |
| Chemical Resistance | ASTM C650 | Resistant | Resistant |
Durability Chart
| Floor Surface Wear Resistance |
|---|
| 1 - Residential Bathrooms |
| 2 - All Residential Areas |
| 3 - All Residential / Light Commercial |
| 4 - All Residential / Commercial |
